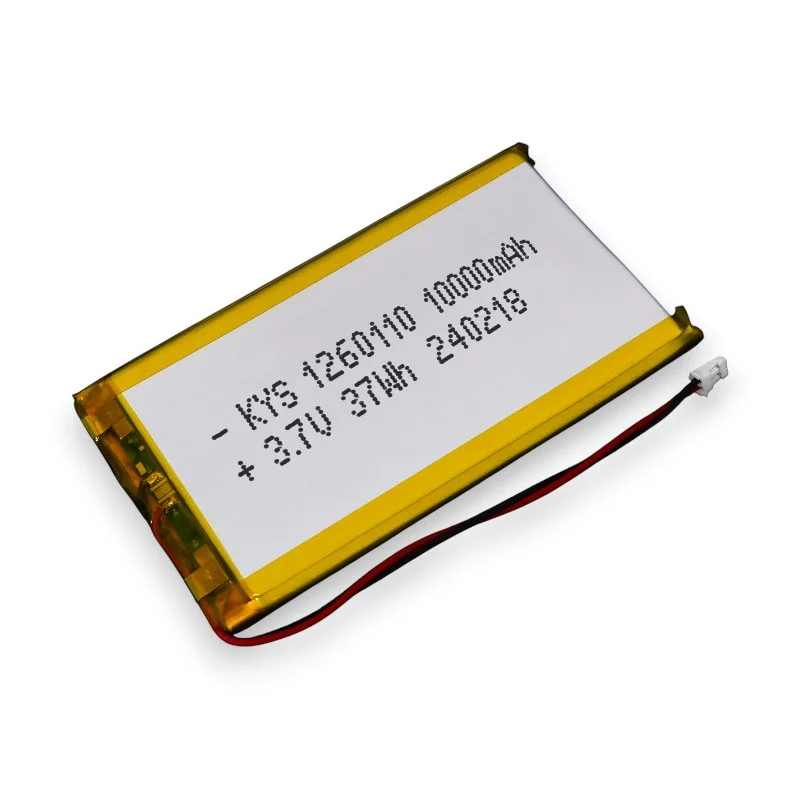

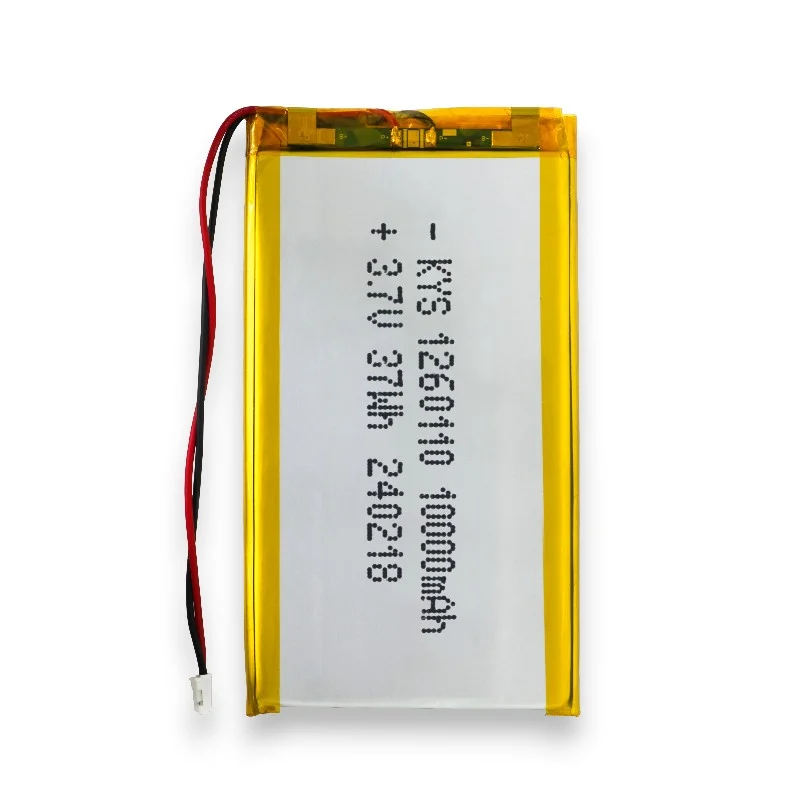

1260110 Pacco Batteria LiPo Flat

Flat LiPo Battery Pack Structure Overview

Engineers construct the flat LiPo battery pack using a laminated pouch architecture formed around a stacked electrode core. First, they align multiple layers of cathode, anode, and separator sheets into a flat geometric layout, and they fix the structure using precision positioning tools. Meanwhile, they route current collector tabs toward designated exit points, and they ensure uniform spacing before transferring the assembly into a sealed enclosure. After that, technicians place the prepared core into an aluminum-plastic composite pouch and stabilize its geometry prior to electrolyte processing.

Sistema di materiali e composizione degli elettrodi

Manufacturers coat lithium metal oxide active materials onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to construct the anode layer. In addition, they introduce a multilayer PP/PE separator film to maintain ionic pathways while blocking internal electrical contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium hexafluorophosphate, and they control its purity to maintain consistent electrochemical behavior. Meanwhile, the pouch material combines polymer flexibility with aluminum barrier properties to reinforce structural containment.

Electrode Processing and Assembly Workflow

Technicians begin by mixing active powders, conductive agents, and binders into a uniform slurry, and they coat this mixture onto metallic foils using automated coating equipment. Subsequently, they dry the coated electrodes under controlled temperature zones to remove residual solvents. Then, they calender the electrode surfaces to regulate density and thickness uniformity. After that, they cut the electrodes into defined flat dimensions and stack them alternately with separators using alignment fixtures. Meanwhile, they weld tab connections through ultrasonic methods while maintaining low-resistance joints.

Formation Cycling and Compliance Standards

Engineers initiate controlled formation cycles to activate electrochemical interfaces and stabilize interphase layers within the cell. Then, they execute aging tests under regulated environmental conditions to observe voltage and impedance behavior. Finally, quality teams conduct dimensional checks, insulation resistance tests, and leakage verification. Throughout production, they follow IEC 62133 and UN38.3 standards, and they validate mechanical stability, electrical consistency, and transport safety compliance for flat LiPo battery pack manufacturing.

Caratteristiche del prodotto

1. 🛠️ Personalizzazione flessibile
   Supporta l'aggiunta di fili, PCB di protezione, connettori a terminale e altre personalizzazioni in base alle esigenze del cliente
2. ⚡ Alta potenza
   Tasso massimo di scarico di 20°C disponibile
3. ⏱️ Ciclo Lungo
   Soddisfa le esigenze di utilizzo a lungo termine del prodotto
4. 🛡️ Alta Sicurezza
   Superato test di sicurezza completi
5. 🔋 Capacità Nominale Vera
   Rispecchia la capacità di progettazione del prodotto
6. ⚛️ Opzioni Multi-Chimica
   Copre i sistemi LCO, NCM, NCA e LFP
7. 🧰 Meccanismo di Protezione Multipla
   Scheda di protezione integrata con protezione contro sovraccarichi, sovrascarichi, sovracorrenti e cortocircuiti

Aree di applicazione dei prodotti

Questo prodotto è adatto a una varietà di dispositivi elettronici portatili e elettrici, con applicazioni tipiche che includono:

• Cura personale e salute: Spazzolini elettrici, dispositivi di bellezza, tracker per la fitness, dispositivi medici

• Smart Digital & Audio: Cuffie, altoparlanti, nebulizzatori, giocattoli, luci

• Pagamento finanziario e ufficio: Macchine POS, Token USB, Stampanti Portatili
