501040 batteria 3,7V

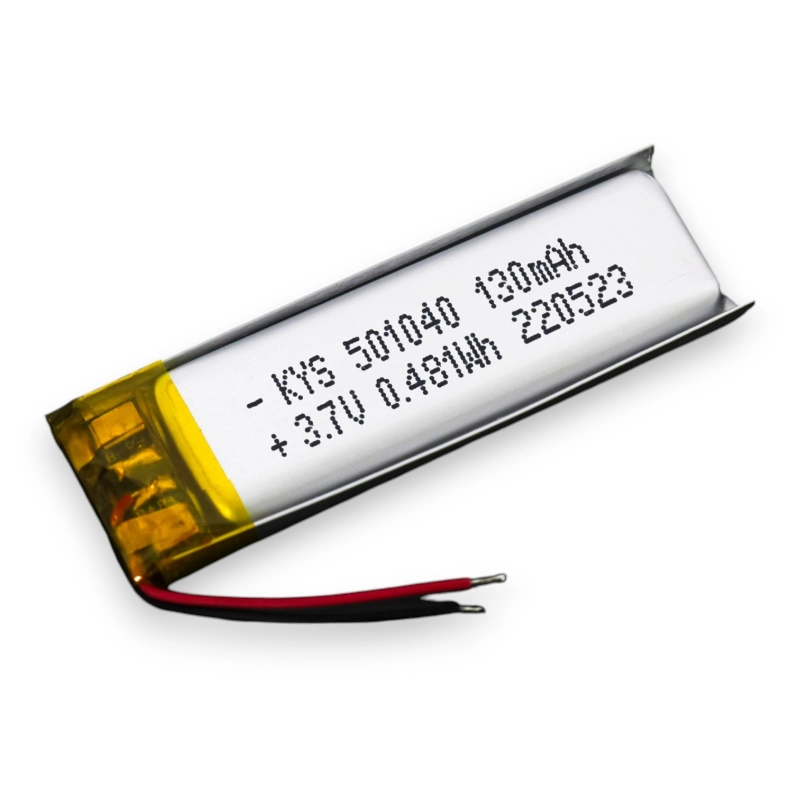

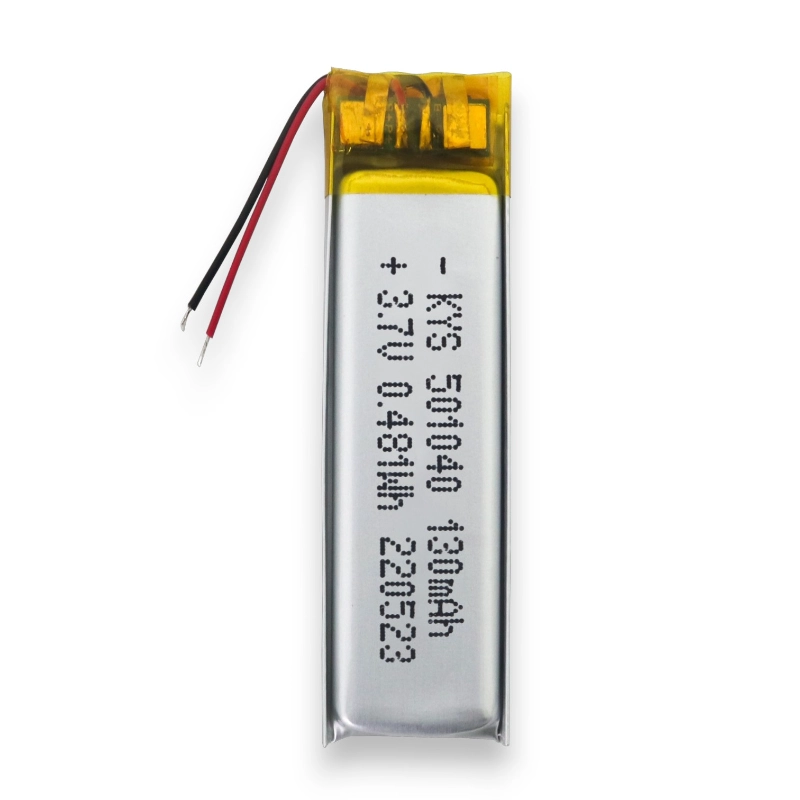

501040 3.7V Battery Structural Overview

Engineers construct the 501040 3.7V lithium polymer battery using a compact pouch-cell geometry with a defined dimensional standard. First, they align the electrode stack in a flat layered format, ensuring consistent thickness across the cell body. Then, technicians position the cathode, separator, and anode in a controlled stacking sequence to maintain uniform internal spacing. Meanwhile, insulation films are inserted at boundary zones to reduce mechanical stress during sealing. After stacking, the structure moves into lamination and pouch forming processes. (Model specification reference: 501040 size approx. 5×10×40 mm cylindrical naming standard system)

Materiali per elettrodi e chimica interna

Manufacturers build the cathode using lithium metal oxide coated on aluminum foil, while the anode uses graphite-based carbon material applied on copper foil. In addition, a microporous polymer separator is placed between electrodes to enable ion transport while preventing direct contact. Furthermore, the electrolyte consists of lithium salts dissolved in organic carbonate solvents, and moisture control is strictly maintained during preparation and filling. Meanwhile, the aluminum-plastic laminated film forms the external enclosure, replacing rigid metal housing with a flexible sealed structure.

Manufacturing Process and Cell Forming

Technicians begin by preparing electrode slurries using active materials, conductive additives, and polymer binders, mixing them into a uniform paste. Next, automated coating equipment applies the slurry onto metal foils with controlled thickness accuracy. After drying, calendaring rollers compress the electrodes to achieve stable density. Subsequently, the electrodes are cut into precise dimensions matching the 501040 form factor and stacked into layered assemblies. Meanwhile, alignment systems continuously verify positioning accuracy before sealing.

Standard di Prova di Formazione e Conformità

Engineers perform initial charge-discharge cycling to activate electrochemical stability and balance internal interfaces. Afterwards, aging tests evaluate voltage consistency and internal resistance drift over time. Finally, sealing inspection, electrical verification, and safety testing are completed. Throughout production, the 501040 3.7V battery follows IEC safety requirements and UN38.3 transport standards, ensuring structural reliability, electrical stability, and shipping compliance.

Caratteristiche del prodotto

1. 🛠️ Personalizzazione flessibile
   Supports adding wires, protection PCBs, terminal connectors, and other customization based on customer requirements
2. ⚡ Alta potenza
   Tasso massimo di scarico di 20°C disponibile
3. ⏱️ Ciclo Lungo
   Soddisfa le esigenze di utilizzo a lungo termine del prodotto
4. 🛡️ Alta Sicurezza
   Superato test di sicurezza completi
5. 🔋 Capacità Nominale Vera
   Rispecchia la capacità di progettazione del prodotto
6. ⚛️ Opzioni Multi-Chimica
   Copre i sistemi LCO, NCM, NCA e LFP
7. 🧰 Meccanismo di Protezione Multipla
   Scheda di protezione integrata con protezione contro sovraccarichi, sovrascarichi, sovracorrenti e cortocircuiti

Aree di applicazione dei prodotti

Questo prodotto è adatto a una varietà di dispositivi elettronici portatili e elettrici, con applicazioni tipiche che includono:

• Cura personale e salute: Spazzolini elettrici, dispositivi di bellezza, tracker per la fitness, dispositivi medici

• Smart Digital & Audio: Cuffie, altoparlanti, nebulizzatori, giocattoli, luci

• Pagamento finanziario e ufficio: Macchine POS, Token USB, Stampanti Portatili
