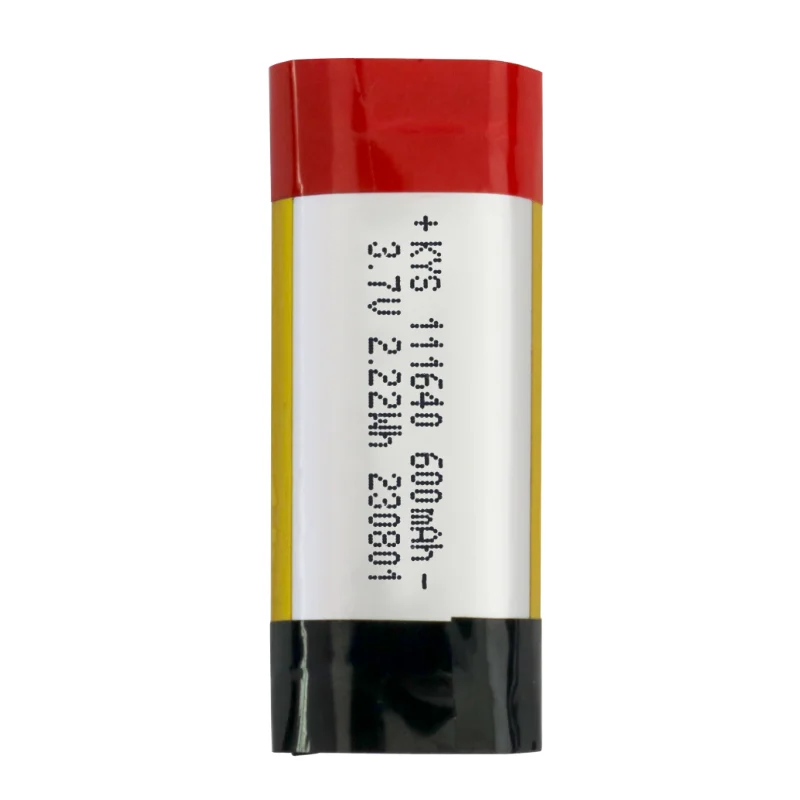

Batteria a tasca in polimero di litio 111640

Lithium Polymer Pouch Battery Structure Description

Manufacturers construct the lithium polymer pouch battery with tabs on opposite ends by stacking electrode layers inside an aluminum-plastic pouch. First, they align cathode and anode sheets in a precise staggered layout, and they insert a microporous separator between them to maintain electrical isolation. Then, engineers extend current collector tabs toward opposite directions, and they fix the alignment during the stacking process. After that, workers place the completed electrode assembly into the pouch casing and adjust its position carefully before sealing preparation begins.

Material Composition and Layer Design

Producers coat lithium metal oxide materials onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to create the anode layer. Meanwhile, they introduce a polyethylene and polypropylene multilayer separator to support ion transport while blocking internal contact. In addition, they select aluminum-plastic composite film as the outer enclosure material, and this structure combines barrier protection with mechanical flexibility. Next, technicians inject lithium salt electrolyte dissolved in organic carbonate solvents, and they ensure uniform penetration across all electrode surfaces.

Electrode Tab Configuration and Connection Method

Engineers position aluminum cathode tabs and copper or nickel-coated anode tabs at opposite ends of the cell. Then, they weld the tabs to the current collectors using ultrasonic or resistance welding equipment. At the same time, they reinforce the tab exit area with insulation materials to prevent edge shorting. After welding, operators route the tabs out of the pouch carefully, and they verify alignment to avoid stress on internal layers before sealing.

Standards and Manufacturing Control System

Quality teams follow IEC 62133 and UN38.3 standards throughout production. They inspect dimensions, test weld strength, and measure insulation resistance at multiple stages. In addition, they grade capacity and match internal resistance to maintain batch consistency. Finally, they run vibration, thermal shock, and high-temperature storage tests, and they verify that each cell meets required safety and manufacturing specifications.

Caratteristiche del prodotto

1. 🛠️ Personalizzabile
   Personalizzabile per soddisfare le esigenze dei clienti
2. ⚡ Alta potenza
   Tasso massimo di scarico di 20°C disponibile
3. ⏱️ Ciclo Lungo
   Soddisfa le esigenze di utilizzo a lungo termine del prodotto
4. 🛡️ Alta Sicurezza
   Superato test di sicurezza completi
5. 🔋 Capacità Nominale Vera
   Rispecchia la capacità di progettazione del prodotto
6. ⚛️ Opzioni Multi-Chimica
   Copre i sistemi LCO, NCM, NCA e LFP
7. 🧰 Meccanismo di Protezione Multipla
   Scheda di protezione integrata con protezione contro sovraccarichi, sovrascarichi, sovracorrenti e cortocircuiti

Aree di applicazione dei prodotti

Questo prodotto è adatto a una varietà di dispositivi elettronici portatili e elettrici, con applicazioni tipiche che includono:

• Cura personale e salute: Spazzolini elettrici, dispositivi di bellezza, tracker per la fitness, dispositivi medici

• Smart Digital & Audio: Cuffie, altoparlanti, nebulizzatori, giocattoli, luci

• Pagamento finanziario e ufficio: Macchine POS, Token USB, Stampanti Portatili
