Casa / Pacco batterie al litio personalizzato 12V 12Ah/24Ah 18650 con struttura BMS e ABS per spruzzatori elettrici
Designed for electric sprayers, this 12V 12Ah/24Ah custom 18650 lithium-ion battery pack provides stable power, long runtime, and dependable performance. Its integrated BMS protects against overcharge, over-discharge, overcurrent, short circuits, and overheating. A durable ABS housing improves impact resistance, while customizable capacity, connectors, cables, and casing options support agricultural, garden, sanitation, and industrial spraying applications through flexible OEM and ODM.
- Model: 18650-6P3S-11.1 V
- Cell Dimensions: 18 × 65 mm
- Nominal Voltage:11.1 V
- Discharge Current: 24 A
- Capacità: 12000 mAh
- Internal Resistance: 280 mΩ
- Applicazione: Spruzzatori elettrici
- Tensione di carica: 12,8 V
Ottieni un preventivo gratuito
Torna alla lista dei prodotti
Panoramica
Designed for electric sprayers, this 12V 12Ah/24Ah custom 18650 lithium-ion battery pack delivers reliable power, long runtime, and stable performance for agricultural, garden, and industrial spraying equipment. Built with high-quality 18650 cells, the pack offers high energy density, low self-discharge, and excellent cycle life. An integrated BMS provides protection against overcharge, over-discharge, overcurrent, short circuits, and temperature abnormalities, helping improve safety and extend battery service life. The durable ABS housing protects the internal cells and electronics from impact, dust, and daily operating wear. Available in 12Ah and 24Ah capacities, the battery can be customized in size, connector type, discharge current, charging interface, cable length, and casing design. It is suitable for portable backpack sprayers, agricultural pesticide sprayers, sanitation equipment, and other 12V mobile devices. OEM and ODM services are available to meet different performance, branding, and application requirements. Custom voltage, capacity, protection, and certification options support diverse customer projects worldwide.
Dettagli del prodotto

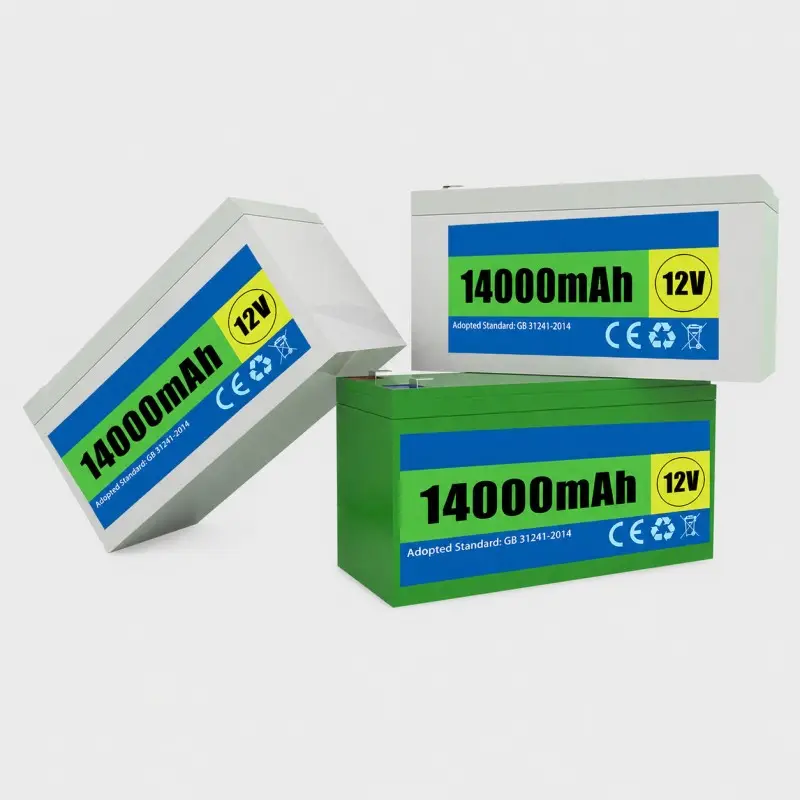

1. 12V High-Capacity Design
Available in 12Ah and 24Ah capacities, this custom battery pack provides extended operating time for electric sprayers and other portable equipment.

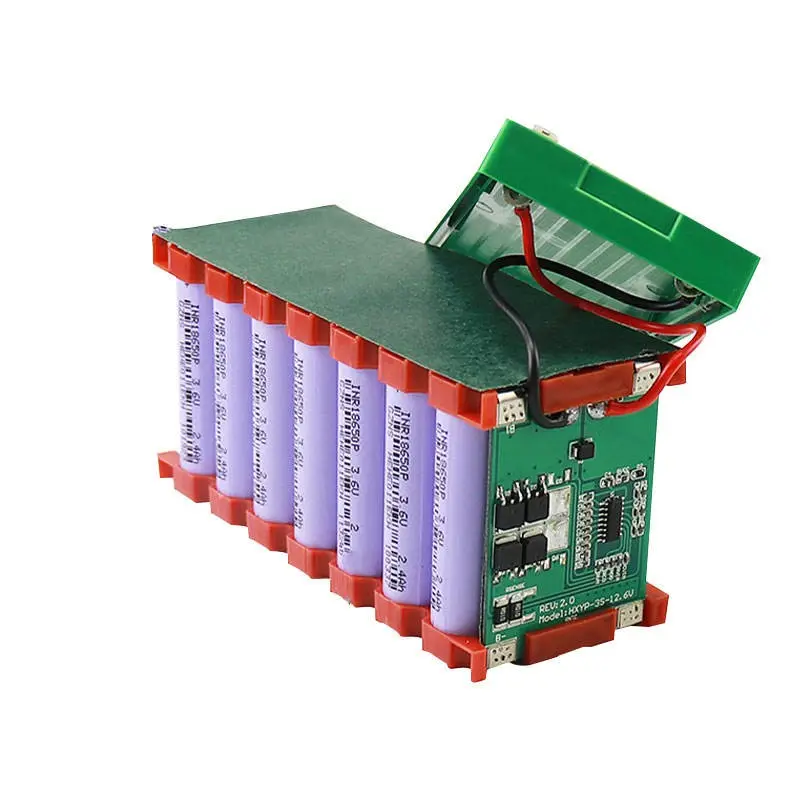

2. High-Quality 18650 Cells
Premium 18650 lithium-ion cells provide high energy density, stable voltage output, low self-discharge, and dependable performance.
3. Protezione BMS integrata
Il sistema integrato di gestione della batteria protegge da sovraccariche, sovrascarica, sovracorrenti, cortocircuiti e temperature anomale.

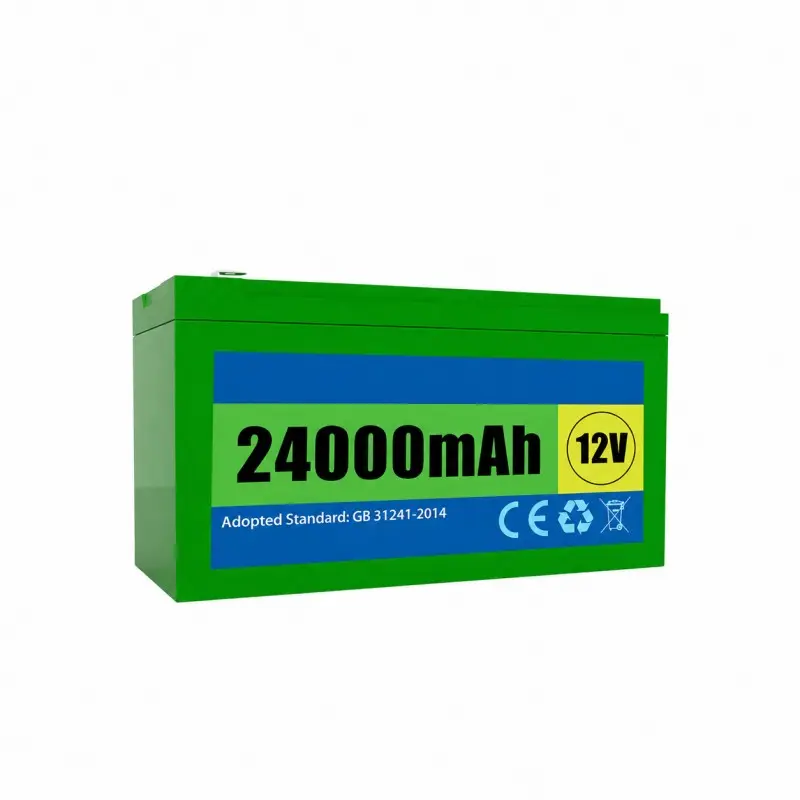

4. Durable ABS Housing
The impact-resistant ABS enclosure protects the internal cells, wiring, and electronic components from vibration, wear, and minor impacts.
5. Long Cycle Life
The rechargeable lithium-ion battery supports repeated charging and discharging, helping reduce replacement frequency and operating costs.
6. Stable Power Output
The battery delivers consistent 12V power to support reliable spraying pressure and continuous operation during demanding tasks.
7. Specifiche personalizzabili
Capacity, dimensions, discharge current, connector type, cable length, charging port, housing, labels, and packaging can be customized.
8. Supporto OEM e ODM
Professional OEM and ODM services are available for electric sprayer manufacturers, agricultural equipment brands, and distributors.
Applicazioni
1. Spruzzatori elettrici per zaini
Provides long-lasting power for portable backpack sprayers used on farms, in orchards, gardens, and greenhouses.
2. Spruzzatori di pesticidi agricoli
Suitable for electric pesticide sprayers requiring stable voltage, reliable discharge performance, and extended working time.
3. Attrezzature per la spruzzatura da giardino
Può alimentare gli spruzzatori da giardino utilizzati per annaffiature, fertilizzazione, controllo delle erbacce, gestione dei parassiti e protezione delle piante.
4. Spruzzatori di disinfezione
Suitable for portable disinfection equipment used in warehouses, farms, schools, hospitals, and public facilities.
5. Electric Misting Systems
Provides dependable power for portable misting, humidification, cooling, and sanitation equipment.
6. Portable Cleaning Equipment
Can be used in battery-powered cleaning machines and mobile washing devices requiring a compatible 12V power supply.
7. Agricultural Water Pumps
Suitable for selected portable pumps and irrigation equipment with compatible voltage and discharge-current requirements.
8. Other Customized 12V Devices
The battery pack can be adapted for various agricultural, gardening, sanitation, cleaning, and industrial applications.
Parametri tecnici
| Modello | 18650-6P3S-11.1 V |
| Dimensione della cella | 18× 65mm |
| Corrente di scarica | 24A |
| Tensione nominale | 11.1V |
| Capienza | 12000 mAh |
| Resistenza interna | 280 mΩ |
| Metodo di elaborazione | Personalizzato secondo necessità |
| Applicazione | Spruzzatori elettrici |
| Tensione di carica | 12,8 V |
