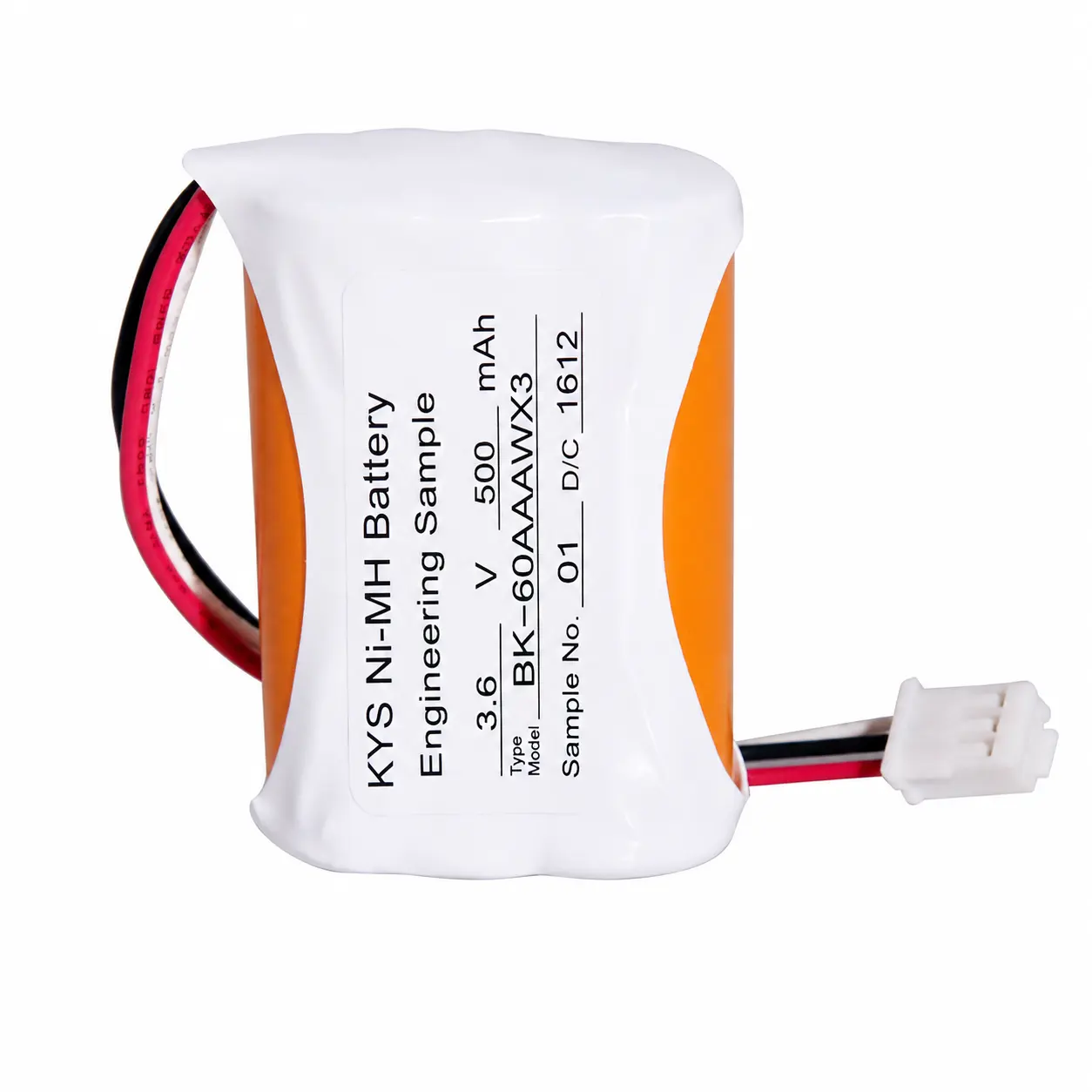

Casa / Batteria Ni-MH ad alta temperatura 3.6V 500mAh per unità di calcolo del veicolo TBOX
3.6V 500mAh wide-temperature Ni-MH battery specially designed for TBOX vehicle computing units. It provides stable backup power for automotive electronics, GPS tracking, telematics, and communication systems, ensuring reliable performance in both high and low temperature environments.
What's in the Box
| Specificazione | Details |
|---|---|
| Tensione nominale | 3.6V |
| Capacità nominale | 500mAh |
| Dimensione della batteria | 11 × 33 × 48 mm |
| Charging Temperature | -20°C a 60°C |
| Discharge Temperature | -20°C to 85°C |
Inchiesta
Torna alla lista dei prodotti
Panoramica
The 3.6V 500mAh Wide-Temperature Ni-MH Battery is specially designed for TBOX vehicle computing units, delivering stable and reliable power in harsh automotive environments. With excellent high and low temperature performance, this battery supports long service life, safe operation, and consistent energy output. Its compact design makes it ideal for automotive electronics, telematics systems, GPS tracking, and vehicle communication devices.
Multi-scenario Adaptation
Remote Control
Toy
Keyboard
Alarm Clock
Shaver
Water Heater
Gas Stove
Gas Meter
Parking Lock
Flashlight
Blood Pressure Monitor
Microphone
Dettagli del prodotto
| Caratteristiche principali | Details |
|---|---|
| Low-Temperature Discharge | Supports discharge from -20°C to 85°C |
| Low-Temperature Charging | Supports charging from -20°C to 60°C |
| Wide-Temperature Storage | Supports storage from -40°C to 85°C |
| Vita ciclica | More than 1000 charge/discharge cycles |
Product Specification
| Dettagli del prodotto | Specifications |
|---|---|
| Battery Specification | NI-MH AAA 500mAh 3.6V |
| Cell Model | NI-MH AAA 500mAh 1.2V |
| PTC | 260PTC |
| Protection Circuit | Without Protection Circuit |
| Tensione nominale | 3,6 V |
| Capacità nominale | 500 mAh |
| Dimensione della batteria | 11 × 33 × 48 mm |
| Resistenza interna | ≤ 180 mΩ |
| Peso della batteria | 80 g |
| Charging Conditions | 50 mA × 16 hours / 250 mA × 2.4 hours |
| Corrente di scarico continua | 1.0 A |
| Protection Current | 5.2 A (260PTC) |
| Tensione di carica | 4.5 V |
| Cut-off Discharge Voltage | 3.0 V |
| Vita ciclica | ≥ 1000 cycles (0.5C charge / 1.0C discharge, remaining capacity ≥ 60%) |
| Charging Temperature | -20°C a 60°C |
| Discharge Temperature | -20°C to 85°C |
| Temperatura di Conservazione | -40°C to 85°C |
